Factory Offer 1W Mini Inground Light Energy Saving Round LED Underground Light With 2 Years Warranty

Name: Factory Offer 1W Mini Inground Light Energy Saving Round LED Underground Light With 2 Years Warranty
Brand: QingHua or OEM
Price: 1 USD

Wholesale Factory Offer 1W Mini Inground Light Energy Saving Round LED Underground Light With 2 Years Warranty from china suppliers

Brand Name : QingHua or OEM

Model Number : QH-MD-001

Certification : CE, RoHS

Place of Origin : ZheJiang, China (Mainland)

MOQ : 5 Piece/Pieces Led Inground Light

Price : US $1 - 10 / Unit

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 5000 Piece/Pieces per Month Led Inground Light

Delivery Time : 3-5working days after prepayment

Packaging Details : Netural carton packge or based on customer's request.

Item Type : Underground Lights

Lamp Body Material : Stainless Steel

IP degree : IP67

Working Lifetime(Hour) : 50000

Warranty : 2 years

Dimension : 80*60mm

Contact Now

Technical Paramter:

Input voltage	DC12V/24V /AC85-265V
Dimension	Ø43*H67mm
Total harmonic distortion	≤9%
Power factor	>0.9
Power efficiency	>87%
LED working voltage	DC24V
LED quantity	1pc
LED consumption	0.8W
System consumption	1.2W
LED luminous efficiency	80LM/W
LED initial flux	80LM
Lamp's efficiency	>91%
Luminance Uniformity	>0.5
Color rendering indexRa	>75
Light distribution	Symmetric / round spot
Light design	LED+lens second grading
LED junction temperature	≤80℃
Working temperature	- 40℃ to + 55℃
Storage temperature	- 25℃ to + 65℃ (25℃ optimum)
IP grade	IP67
Net weight	0.2KG
Working lifespan	50000 Hours
Note: Different LED color temperature have deviation, deviate≤5%

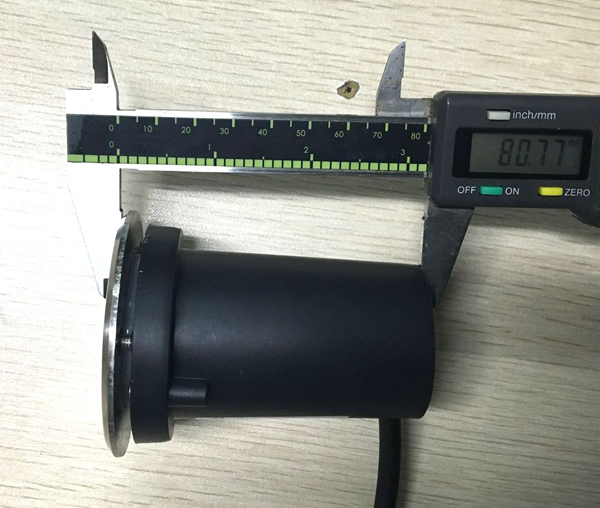

Detailed Photos:

Installation Instructions:

Note1: To Clean out all the accessories of lamps and lanterns

Note2: First cut off power supply before you install it

Note3: Dig a hole according to the embedded box shape and size, using concrete to make imbedded box stable

Note4: Should prepare a IP65 or IP67 connection device, used to connect to power supply and the lamp body power cords

Note5: To ensure the service life of the LED underground lamp, it should be better use the power cords passed VDE certification

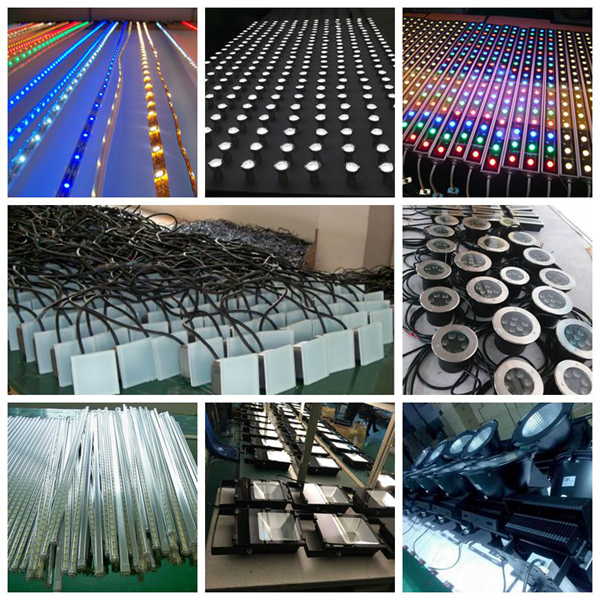

Company Show:

Factory Offer 1W Mini Inground Light Energy Saving Round LED Underground Light With 2 Years Warranty

Packaging & Shipping:

By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choosethis way.
Your shipping agent or forwarder.

Trade Terms:

Payment: T/T , 30% deposits before production, 70% balance to be paid before dleiverying (Western Union or are welcomed)
Production lead time for 100~500pcs: 10days, 500~1000pcs:15days
Sample can be delivered in 3 days
Shipping freight are quoted under your requests
Shipping port: Shenzhen, Mainland China
Discounts are offered based on order quantities
MOQ: 5pcs

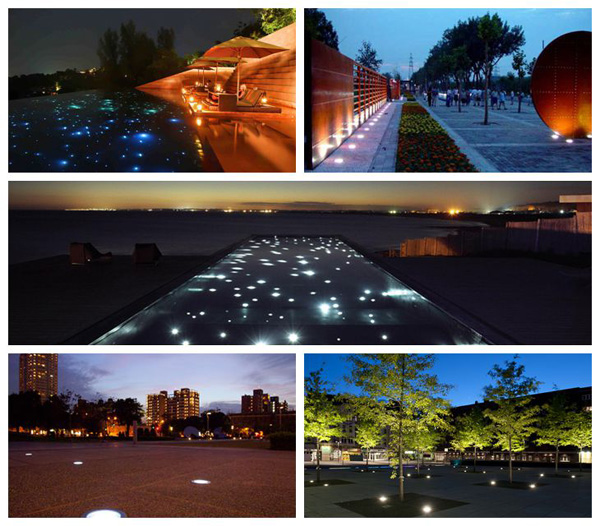

Shared by customers:

Why US:
1: CE ROHS EMC ROHS EMC PSE certificate.
2: Free replacement&maintaince within 2 years.
3: High brightness Epistar chip, lifespan 50000hours.
4: Customized box with your logo for order 500pcs or more
